    PCAP Touch Foil

    Interactive Touch Foil for Windows and Glass

    Pro Display Touch Film transforms glass into a touch screen making this product the ideal technology for interactive window displays. The PCAP film simply install’s to the backside of a window to create a through-glass touch screen window.

    STANDARD PCAP MULTI-TOUCH FOIL SIZES*

    *Custom size Multi-Touch Foils are available on request. Larger custom sizes are available, however they use permanent adhesive liners rather than static cling liners

    Single/Dual Touch Foils are available in standard sizes of 27″, 32″, 43″, 49″, 55″, 65″, 75″ & 82″ with custom sizes available on request.

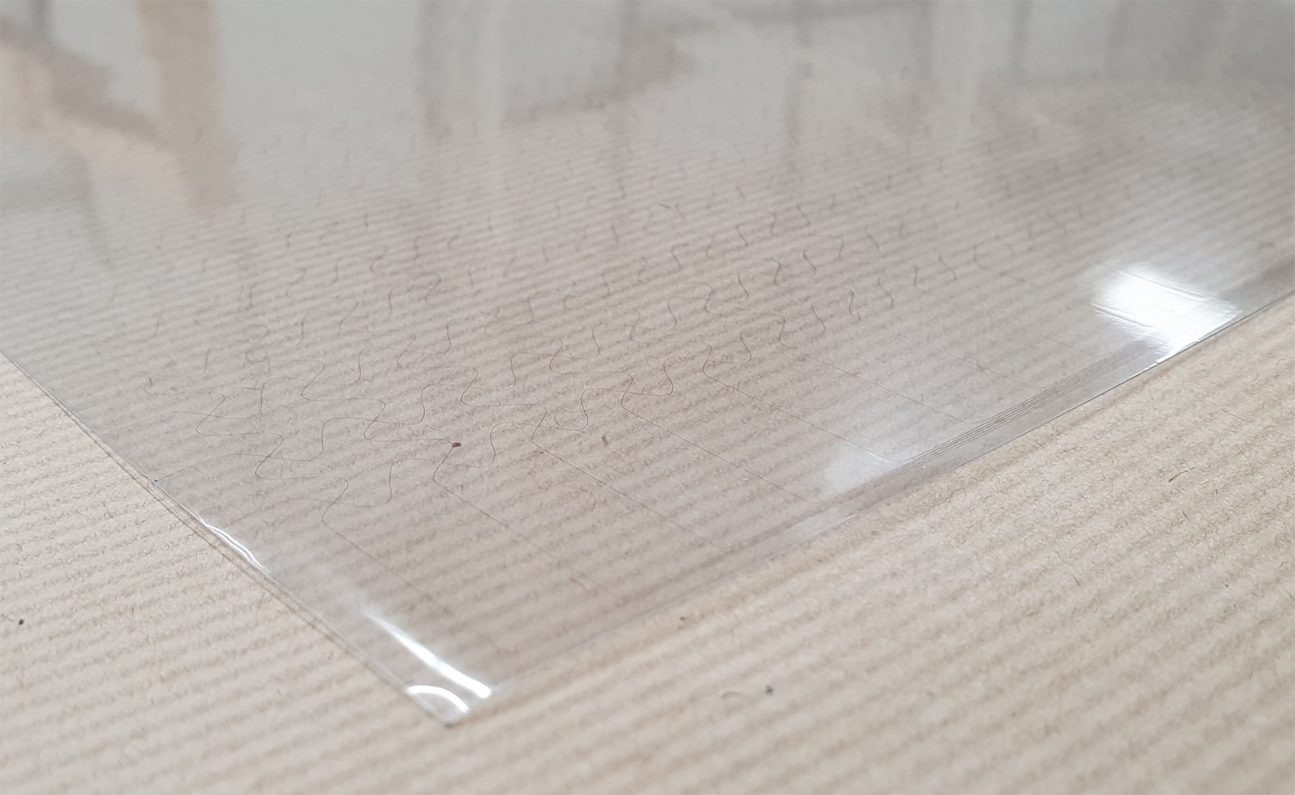

    TRANSPARENT TOUCH FILM

    This transparent touch film can be combined with LCD / LED displays or Rear Projection Film creating a versatile touch screen solution for a wide range of applications. The foil has an electrostatic cling adhesive making installation to glass simple, and is the ideal choice for both permanent and temporary installations.

    INTERACTIVE DUAL TOUCH FOIL

    INTERACTIVE TOUCH FOIL FEATURES

    • Single touch and multi touch options available
    • PCAP touch screen technology
    • Standard sizes from 27” to 86”
    • Custom sizes from 15” to 98”
    • Self-adhesive film installing to glass or acrylic
    • USB HID technology

    PCAP INTERACTIVE TOUCH FOILS

    Our PCAP Interactive Touch Foils are available in single touch formats which operate through glass thicknesses up to 20mm or multi-touch format which operate through glass thicknesses up to 12mm. Please note, we recommend toughened or laminated glass and don’t guarantee performance through double glazed glass with an air gap between the glass panels.

    This glass touch screen technology can be integrated for a wide range of applications including retail store windows, touch tables, gaming, ATM’s, freestanding kiosks and totems and touch control panels.

    VOLVO POP UP SHOP

    Our Clearview Projection Foil was used in a VoIvo pop-up store, encouraging shoppers to ‘connect’ with a brand new Volvo V40, on show inside the pop-up shop, by playing a light pattern memory game. When the shopper repeats the pattern correctly on the touch window, an LED trail lights up to connect them to the car.

    LEARN MORE ABOUT THE VOLVO POP UP STORE HERE

    INTERACTIVE PROJECTION FOIL

    Our Interactive Projection Film is an innovative fusion of our PCAP touch foil with a selection of our bestselling projection films, together creating a rear projection powered interactive window screen. Like our standard touch foil, our Interactive Projection Foil uses through glass touch capabilities to function and can be retrofitted to any existing toughened or laminated glass surface.

    REAR PROJECTION TOUCH FOIL

    Our rear projection touch films are available with single, dual and multi-touch functionality in sizes up to 86” as standard with custom sizes available on request up to 98”. These interactive touch films are ideal for window displays that experience high levels of traffic outside opening hours, encouraging engagement and promoting your brand whilst keeping all valuables protected and hidden inside.

    Interactive projection foil are designed for rear projection applications as standard however custom front projection options are also available.

    INTERACTIVE REAR PROJECTION WINDOW DISPLAY

    INSTALLATION

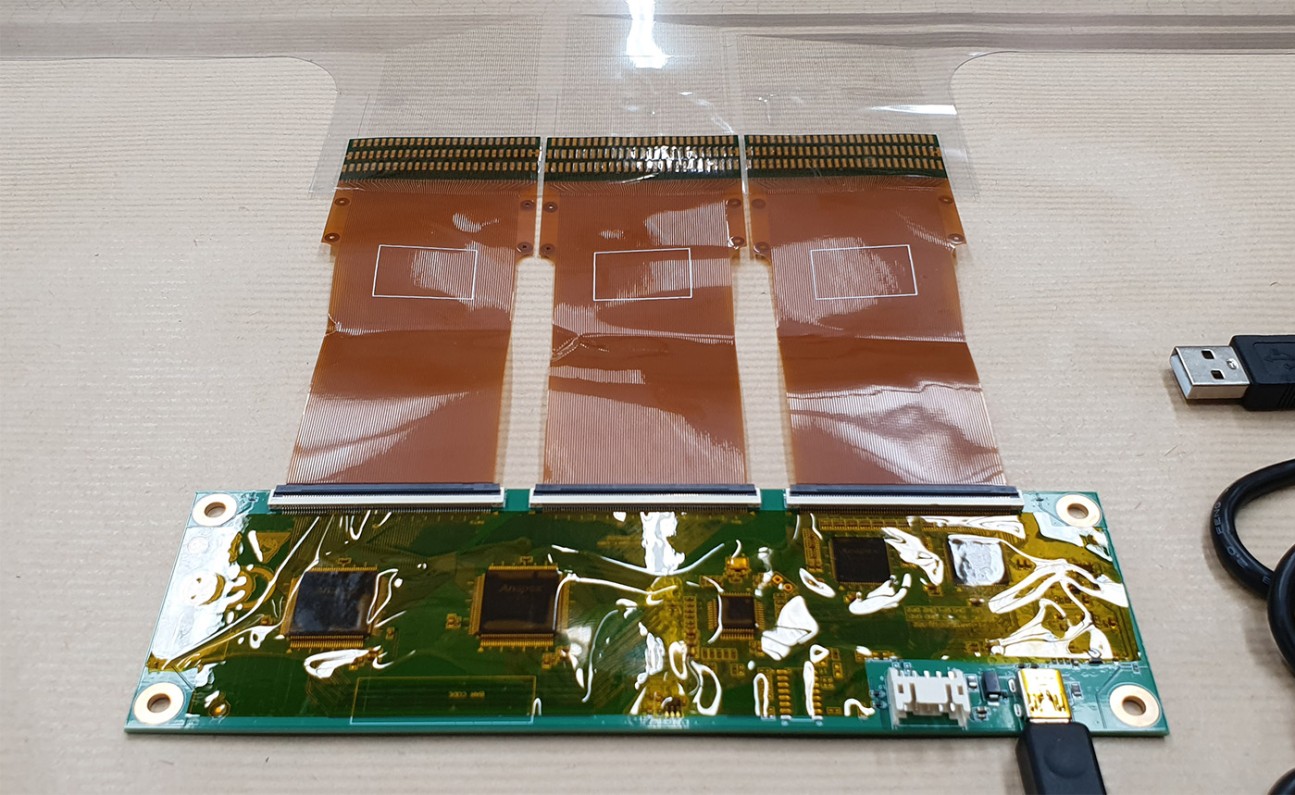

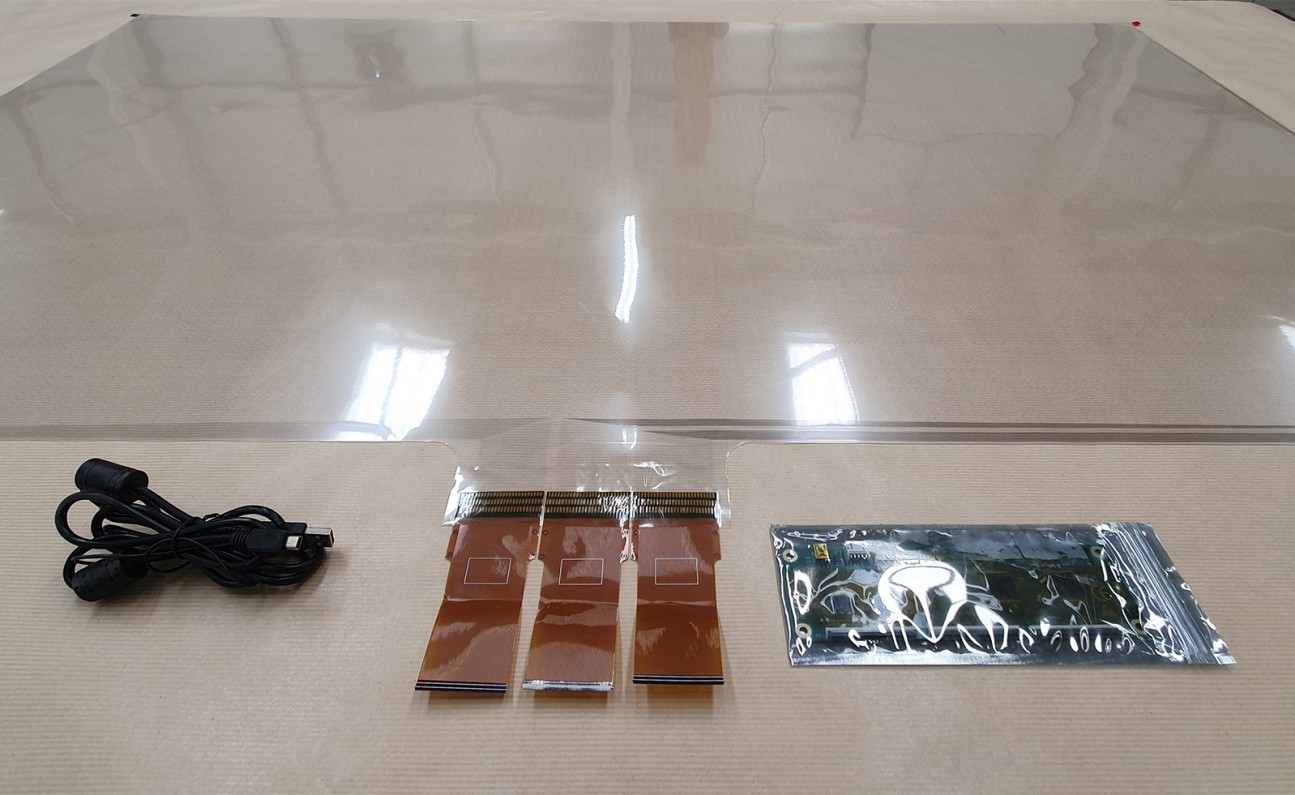

    Pro Display Touch Film products come complete with a sign fitting squeegee, spray bottle, nitrile gloves and installation guide ensuring you have all items at your disposal to ensure a quick and simple installation. The foil connects to your PC or Media Player via USB and can be calibrated using the provided touch screen drivers.

    CAN A TOUCH SCREEN WORK THROUGH GLASS?

    Yes, our Touch Foils transform toughened or laminate glass up to 20mm thick into a single touch display. Toughened or laminate glass up to 10mm thick can also be used with our multi touch foils.

    Please note, touch functionality will not operate through double glazing.

    WHAT IS AN INTERACTIVE TOUCH FOIL?

    An Interactive Touch Foil is a retrofit through-glass touch foil that can be applied to a glass or acrylic surface to instantly turn any display into an interactive screen.

    HOW DO YOU USE AN INTERACTIVE TOUCH FOIL?

    Our Touch Foils are easy to install and are manufactured with a self-adhesive surface making the product simple to install with water and a sign fitting squeegee. Simply apply the touch foil to the rear of the glass and connect to PC or Media Player via USB HID to interact with the content from the other side of the glass.

    HOW DOES TOUCH FOIL WORK?

    Our Touch Foils use PCAP (projected capacitive) touch technology to register interaction. In order to register a touch, PCAP technology measures electrostatic capacitance to register the precise location of the touch through the conductivity of the body. This means the touch foils will only record touch from fingers or gloved hands while specialist PCAP stylus’ can also be used.

    WHERE CAN I USE A TOUCH FOIL?

    Touch Foils offer a quick and easy way to turn any LCD or LED screen into a touch screen making them incredibly popular across a range of industries. They are most common however, in store window applications where the screen can be stored safely behind the glass whilst interacted with well after closing time.

    Other popular applications include car showrooms, museums, airport, train and bus stations to name a few.
